IT-LINK V1600D8 8 Port EPON OLT

IT-LINK V1600D8 8 Port EPON OLT

The IT-LINK V1600D8 8 Port EPON OLT is a solution that has been precisely built to provide exceptional performance and reliability in current networking situations. This network switch is designed to perform perfectly across a wide range of temperatures, from 0°C to +50°C, ensuring excellent operation even in demanding circumstances. Furthermore, its storage temperature range of -40°C to +85°C ensures durability and endurance, making it suited for use in a wide range of scenarios.

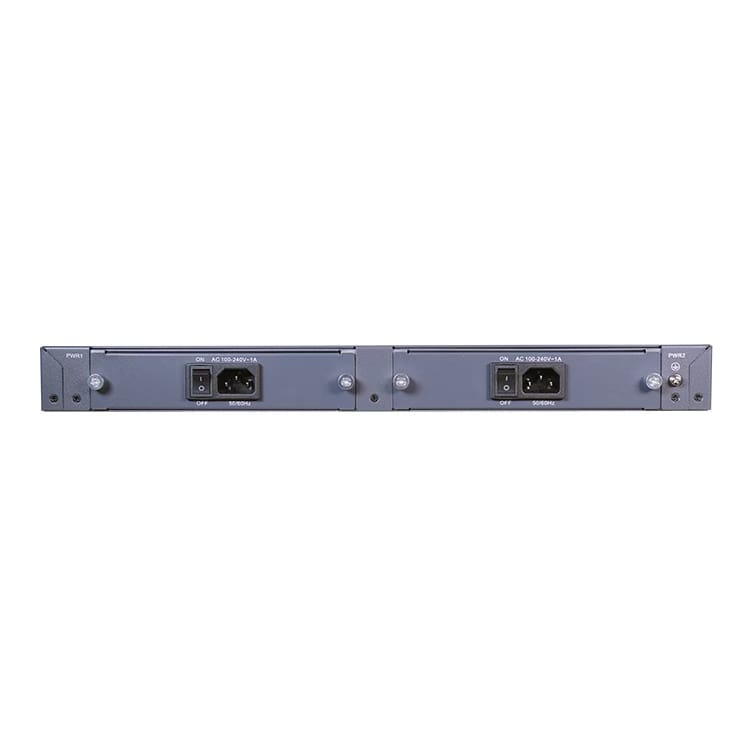

The V1600D8 shines with a low power consumption of 45W, guaranteeing energy savings while maintaining performance. Its versatile power supply choices, including AC:100~240V, 47/63Hz, and DC:-48V, along with the availability of a BBU (Battery Backup Unit) for D4-BT and double power module hot backup, offer redundant power.

With a net weight of 4.5kg (in single AC power mode), this network switch achieves the ideal mix between robustness and manageability. Its lightweight design allows for simple installation and maintenance, while its strong construction provides long-term performance in demanding network settings.

With superior PON (Passive Optical Network) port requirements, the V1600D8 has outstanding transmission capabilities, including a transmission distance of up to 20KM. This switch provides high-speed and dependable connection for a wide range of networking applications, thanks to EPON (Ethernet Passive Optical Network) port speeds of 1.25G upstream and downstream, as well as SC/UPC connectors.

It supports 9/125μm Single-Mode Fiber (SMF) for interoperability with common fiber optic cable infrastructure. The TX/RX wavelengths of 1490nm and 1310nm enable excellent signal transmission and reception. Furthermore, its RX sensitivity of < -32dBm and saturating optical power of -8dBm add to its remarkable performance and stability.

Whether you’re constructing network infrastructure for telecoms carriers, internet service providers, corporations, or small companies, the IT-LINK V1600D8 8 Port EPON OLT Network Switch exemplifies networking technology innovation, efficiency, and dependability.
